The AL-KO 18 V BOSCH HOME AND GARDEN COMPATIBLE 3.22 Li R Easy Cordless Rear Roller Lawnmower - appears light and with a chic design
Developed exclusively for the UK market, the 3.22 Li R Easy cordless rear roller lawnmower provides compatibility with the Bosch battery range. This lightweight and powerful cordless mower has a rear roller bar underneath the chassis to help achieve that classic striped finish to your lawn.
The 3.22 Li R Easy features a compact 32cm (13") cutter deck ideally suited to smaller lawns up to 200 square metres. The cutting height can be centrally adjusted through six positions between 20mm and 75mm to suit the mowing conditions. Integrated grass fins on the front and side of the cutter deck optimally guide the grass into the deck. Grass clippings are collected into a 35-litre plastic grass box with an integrated fill level indicator.

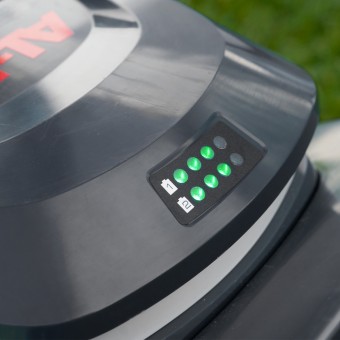

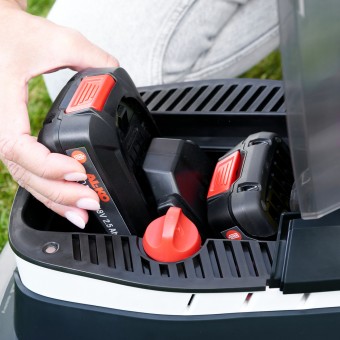

The AL-KO 3.22 Li R Easy incorporates dual battery slots so you can get extended run times with two 2.5Ah batteries (included when buying this kit option). An LED battery indicator is located in clear sight to keep you informed of the charge level status. A push-propelled machine, the efficient motor offers high performance and efficiency.

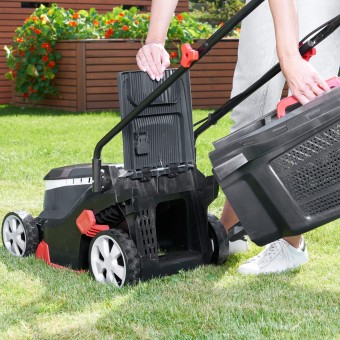

Lightweight at only 11.7kg, the mower features a useful carry handle, whilst the standard handles have a fixed base and wingnut for folding down for more compact storage in your garden shed or garage.
2 x 2.5Ah batteries & standard charger included.
With the AL-KO 18 V BOSCH HOME AND GARDEN COMPATIBLE Li-ion battery, you have access to different running and charging times, as you can choose from four different Ah sizes. 2.5 / 4 / 5 and 6 Ah batteries are available.
Our advantages for you
Our two-year manufacturer's warranty also includes the battery of this device.
Warranty period
Standard Domestic Warranty - 2 Years
Extended Domestic Warranty - N/A
Commercial Warranty - 90 Days
Technical Data
| Drive type | Battery |
|---|---|
| Battery Family | AL-KO 18 V Bosch H&G compat. |
| Net Weight in kg | 12 KG |
| Wheel Drive | No |
| Connectivity | No |
| Max Run Time 2.5Ah in min | 25 MIN |
| Catch Box Capacity in Litres | 35 L |
| Max area m2 2.5Ah in min | 200 M2 |
| Max area m2 4.0Ah in min | 300 M2 |
| Max area m2 5.0Ah in min | 400 M2 |
| Charging Time 6.0Ah in min | 130 MIN |
| Charging Time 4.0Ah in min | 95 MIN |
| Length in cm | 130 CM |
| Height in cm | 102 CM |
| Width in cm | 36 CM |
| Gross Weight in kg | 14 KG |
| Catch Box Material | Plastic |
| Device has eco mode | No |
| Suitable Area up to sqm | 250 QM |
| Automatic Power Mode | 002 |
| Cutting height min / max in mm | 20 - 60 MM |
| Cutting Height Adjustment | Central, 6 stage |
| Housing Material | Plastic |
| Function | 2in1 |
| Mulching function | No |
| Side Discharge | No |
| Max Airflow Technology | No |
| Wheel Diameter - Front mm | 155 MM |
| Height adjustable Handlebars | Yes |
| Wheel Diameter - Rear mm | 180 MM |
| Foldable Handlebar | No |
| Lawn mower cockpit handlebar | No Cockpit |
| Forward Speed max km/h | 2.5 KMH |
| Wheels with Ball Bearings | No |
| Catch Box Level Indicator | Yes |
| Box Length in cm | 71 CM |
| Compatible Batteries | 113893, 113894, 113895, 113896 |
| Sound Power Guar LwA[dB (A)] | 83 |
| Cutting Width in cm | 32 CM |
| Max Run Time 4.0Ah in min | 35 MIN |
| Product Range | Easy |
| Brand | AL-KO |
| Max Run Time 5.0Ah in min | 45 MIN |
