A high degree of comfort, innovation and a modern design. These combine to create our "Premium" petrol lawn mowers, making them the ideal partner for your lawn care.

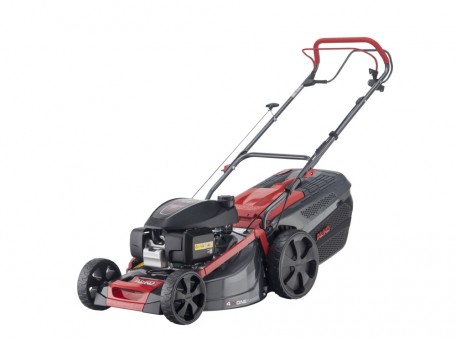

The Premium 520 SP-H Self Propelled Petrol Lawnmower
Chic and comfortable, that is how the Premium 520 SP-H petrol lawn mower from AL-KO presents itself. Developed in Germany and manufactured in Austria, this lawn mower offers the highest quality. The modern design makes it an eye-catcher in every garden. The longevity of the petrol lawnmower is increased through selected components and materials. With the "Premium" lawnmowers, lawn mowing becomes a pleasure.
Technical Details of The Premium 520 SP-H
With a cutting width of 51 cm / 20 inches, the Premium 520 SP-H petrol lawnmower ensures fast progress even in large gardens (up to 1800 m²). The cutting height is adjusted centrally in up to 7 steps with heights ranging from 30mm to 80mm. Thanks to the powerful 3.2 kW GCVx 170 Honda engine, the wheel drive and the XXL smooth-running wheels, even mowing lawns with slopes is effortless.

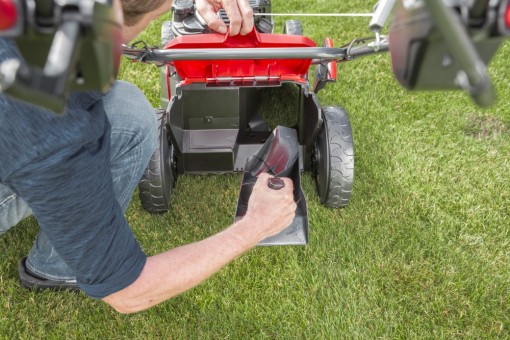

The 4IN1function offers mowing, collecting, mulching and side discharge of the lawn cuttings. The ergonomically shaped handlebar with a cockpit housing the mower controls ensure comfort when working. Thanks to the extra deep sheet steel mower deck with MaxAirflow technology, the grass clippings are thrown to the back of the 70-litre grass catcher for maximum filling performance. A fill level indicator on top of the collector alerts the user as to when the box requires emptying. The integrated handle on the front of the "Premium" lawnmower is ideal when it comes to transporting, storing, or lifting the lawnmower over steps or obstacles in the garden.
Buy The Premium 520 SP-H Lawnmower and Alternatives
You can buy the Premium 520 SP-H petrol lawn mower from our online webshop or from one of our AL-KO specialist dealers near you. The Premium 520 SP-H petrol lawn mower provides efficient support for the care of your lawn. Would you like a petrol lawn mower with a comfortable electric start? Then we recommend the Premium 520 VSi-B petrol lawn mower.
Warranty period
Standard Domestic Warranty - 2 Years
Extended Domestic Warranty - 5 Years *Subject to Annual Servicing*
Commercial Warranty - 90 Days
Technical Data
General
| Product number | 119969 |
|---|---|
| EAN | 4003718356144 |
| Net Weight in kg | 36.5 KG |
| Gross Weight in kg | 40.7 KG |
| Housing Material | Steel |
| Sound Power Guar LwA[dB (A)] | 98 |
| Product Range | Premium |
| Brand | AL-KO |
Power supply
| Drive type | Petrol |
|---|
Mowing System
| Cutting Width in cm | 51 CM |
|---|---|
| Working Width in cm | 51 CM |
| Cutting height min / max in mm | 30 - 80 MM |
| Cutting Height Adjustment | Central, 7 stage |
| Mulching function | Yes |
| Side Discharge | Yes |
| Function | 4in1 |
Handle system
| Height adjustable Handlebars | Yes |
|---|---|
| Foldable Handlebar | Yes |
Traction System
| Forward Speed max km/h | 3.5 KMH |
|---|---|
| Wheel Drive | Single speed wheel drive |
| Wheel Diameter - Rear mm | 280 MM |
| Wheel Diameter - Front mm | 200 MM |
| Wheels with Ball Bearings | Yes |
Working area
| Suitable Area up to sqm | 1800 QM |
|---|
Collection System
| Catch Box Level Indicator | Yes |
|---|---|
| Catch Box Capacity in Litres | 70 L |
| Catch Box Material | Plastic |
| Max Airflow Technology | Yes |
Engine
| Autochoke | Yes |
|---|---|
| Volume of Fuel Tank Liters | 0.91 L |
| Cubic Capacity in cc | 167 |
| Number of Strokes rpm | 2900 |
| Power in kW | 3.2 KW |
| Engine Model | Honda GCVx 170 |
| Primer | No |
| No. of Engine Cylinders | 1 |
| Device Power in kW | 3.2 |
Download Manuals
| Product Manual |
Download (6.14MB) Download (17.27MB) |
|---|---|
| EC Declaration of Conformity |
Download (527.43KB) |
